Automatic Shrink Labeling Machine

    • Automatic Shrink Labeling Machine
    • Automatic Shrink Labeling Machine
    • Automatic Shrink Labeling Machine
    • Automatic Shrink Labeling Machine
  • Automatic Shrink Labeling Machine

    รายละเอียดสินค้า:

    Place of Origin: China Mainland
    ชื่อแบรนด์: Jiayuan
    ได้รับการรับรอง: CE,SGS
    Model Number: WD –S350

    การชำระเงิน:

    Minimum Order Quantity: 1 set
    ราคา: negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 40 days
    Payment Terms: T/T; L/C
    Supply Ability: 5 sets/month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Applied Material: PVC, PET, OPS Automatic Grade: Auto
    Bottle type: PET, Round Bottle, Flat Bottle capacity: 20000bph
    Driven Type: Electric Product name: Shrink Labeling Machine
    เน้น:

    shrink sleeve labeling machine

    ,

    bottle labeling machine



    Full Automatic Shrink Labeling Machine 20000bph For Condiment



    Quick Detail:


    1. Product: Full automatic double sides labeling machine
    2. Model:WD –S350
    3. Main Material: SS304
    4. Production capacity: 20000bph(500ml)
    5. Usage: Labeling machine
    6. Warranty: 1year free

    Full automatic double sides labeling machine



    Description:


    Full automatic double sides labeling machine

    1. The Scope of Application

     Label the front and back sides of different kinds of objects.

    2. Device Characteristic:

    Adopt mature technology PLC control system, operation is stable and high-speed

    Using touch-screen control operating system, simple, practical, efficient;

    Upgraded disc label station design, can label conical and flask bottle.

    Screw adjustment to suppress body movements accurately

    Synchronization chain mechanism ensures labeling smooth and precise calibration.

    Advanced technology of pneumatic coding system, print the batch number and   expiry clearly.

    Transmission-type rolling bottles make sure the labels attached more firmly;

    Labeling transparent label without bubble and self-adhesive label without wrinkle;

    Butterfly designed station; the angle of machine can be adjusted to adapt the bottle's shape



    3. Technical parameter



    Model

    DLM-A

    Driving Mode

    Servo Motor

    Operating direction

    Right/Left

    Production(pcs/min)

    50-180(subject to the size of objects and labels)

    Conveyor speed(meter/min)

    ≤40

    Labeling accuracy

    ±1.0mm(subject to the roughness of the plane)

    The application label

    Adhesive sticker, transparent or opaque

    The inner diameter of laebl rolll(mm)

    76mm

    The outer diameter of label roll (mm)

    350mm(max)

    The application size of label

    Width 15-140mm, length15-300mm

    The application size of bottle

    The machine can customized as label  objects

    Weight(kg)

    220

    Power(w)

    1000W

    Voltage

    AC 110V/220V 50/60HZ

    The appearance of machine(mm)

    2400(L) 1350(W) 1500(H)mm



      4. Main Electrical Configuration Table



    No

    Name

    Model

    Unit

    Brand

    1

    PLC control system

    6ES7214-1A

    1 set

    SIEMENS

    2

    Touch-screen man-machine interface

    6AV6648-01A

    1 piece

    SIEMENS

    3

    Inverter

    22F-A2P5N103

    1 piece

    Delta

    4

    photoelectric sensor

    (check label objects)

    FS-N18N

    1Set

    Japan

    KEYENCE

    5

    Photoelectric sensor

    (check opaque label)

    GS61

    2 sets

    German Leuze

    6

    Main transport motor

    370W1:30

    1 piece

    Switzerland

    ABB

    7

    Sent label servo motor

    2004-RZ08BAIAN3

    2 sets

    America AB

    8

    Drive

    2003-CSD3-08BX2

    2 sets

    America AB

    9

    Separate Bottle Motor

    40W 1:30

    2sets

    German  JSCC

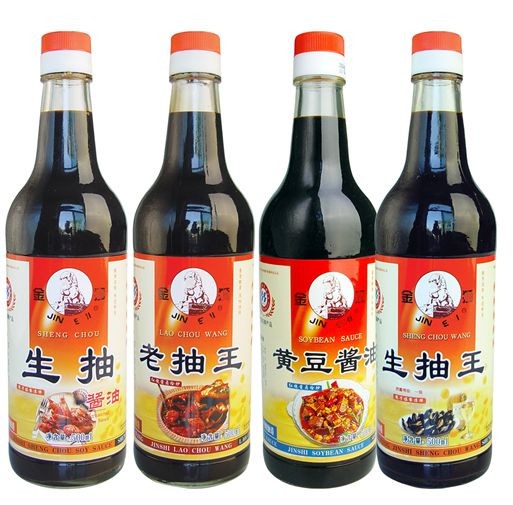

    Applicable Bottle Types


    Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,

    etc.


    Pictures:

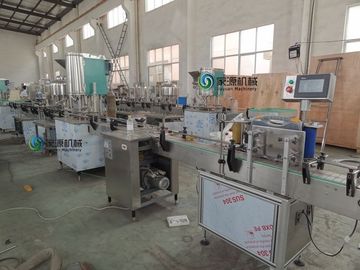

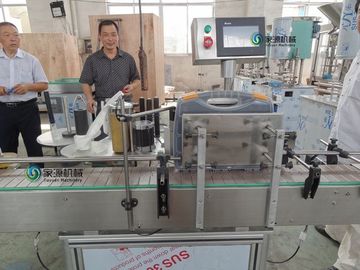

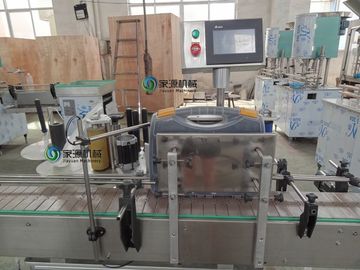

    Automatic Shrink Labeling Machine 0Automatic Shrink Labeling Machine 1Automatic Shrink Labeling Machine 2Automatic Shrink Labeling Machine 3






    Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
