500 ml Water Bottling Equipment

จีน 500 ml Water Bottling Equipment ผู้ผลิต
500 ml Water Bottling Equipment ผู้ผลิต 500 ml Water Bottling Equipment ผู้ผลิต 500 ml Water Bottling Equipment ผู้ผลิต 500 ml Water Bottling Equipment ผู้ผลิต

ภาพใหญ่ :  500 ml Water Bottling Equipment

รายละเอียดสินค้า:

Place of Origin: China Mainland
ชื่อแบรนด์: Jiayuan
ได้รับการรับรอง: CE,SGS
Model Number: CGF8-8-3

การชำระเงิน:

Minimum Order Quantity: 1 set
ราคา: 12000
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 10 sets/month
Verified Supplier

China Mainland

  • Product Details
รายละเอียดสินค้า
Application: Liquid|Soda|Beverage|Juice Automatic Grade: Auto
Bottle Type: PET|Can|Barrel Capacity: 500 ml
Driven Type: Ectric|PLC Material: SS304
Product name: Water Filling Machine
แสงสูง:

liquid bottle filling machine

,

water bottling equipment

500 ml Water Bottling Equipment





Quick Detail:



1. Product: CGF8-8-3 water filling machine manufacturer

2. Main Material: SS304

3. Production capacity: 3000bph(500ml)

4. Usage: Fill pure/mineral/distilled water and so on

5. Dimension: 1900*1400*2200mm

6. Warranty: 1year free

CGF8-8-3 water filling machine manufacturer





Description:



CGF8-8-3 water filling machine manufacturer

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan'sMitsubishi, France Schneider, OMRON





Application:


This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
integrates bottle washing, filling and capping into one monobloc unit.





Specifications:



CGF8-8-3 water filling machine manufacturer



1.Electrical elements



PLC

MITSUBI

Frequency converter

MITSUBI

Touch screen

WEINVIEW

Contactor

DELIXI

Cylinder

Airtac

Pump

Nan fang pump

Switch

Omron

Electromotor

Wannan Motor

2.Suitable bottle:

Round or square plastic bottle

Bottle size

250-1500ml

Bottle body:Φ90mm,

Bottle height H:150-320mm

Bottle neck diameter:

Φ20-Φ35mm

Cap:

Plastic screw cap

DiameterΦ25-Φ35mm

Cap height:15-25mm

3.Main parameters:



Production capacity:

500ml,3000BPH

Position:

washer8,filler8,capper3

Filling temperature:

Normal filling,gravity filling

Air pressure:

0.6mpa(self-prepare)

4.Motor powder:



Main motor: 1.5kw

Capper loading: 0.09kw

Washing pump: 0.37kw

Filling pump: 0.37kw

Convoying motor:0.55kw

Air conveyor motor:0.75kw





3) Pictures:

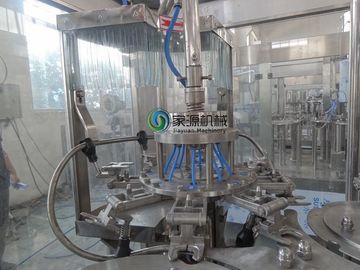

Washing head



500 ml Water Bottling Equipment 0

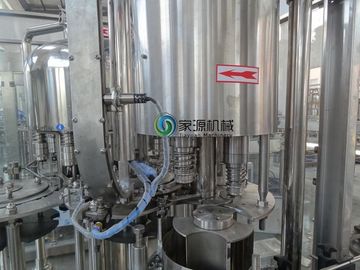

Filling head



500 ml Water Bottling Equipment 1

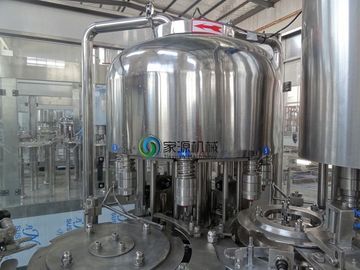

Capping head



500 ml Water Bottling Equipment 2





Competitive Advantage:



Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

  1. Bottled water production line
  2. Carbonated soft drinks production line
  3. Hot-fill juice and tea production line
  4. 5 Gallon bottled water production line
  5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
