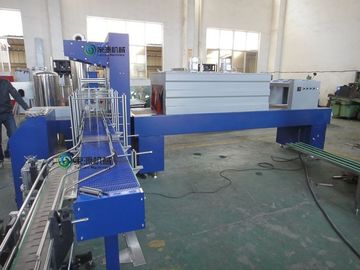

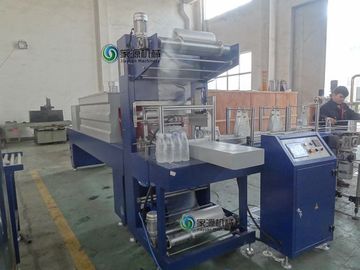

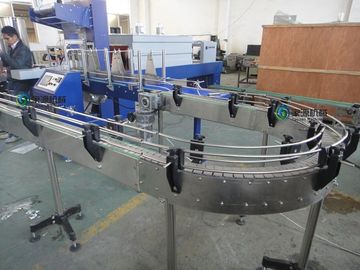

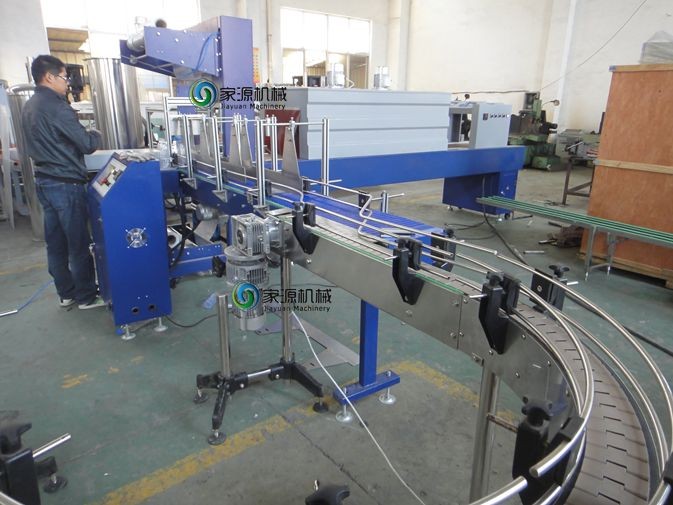

Juice Bottle Shrink Packing Machine

Juice PET Bottle Shrink Packing Machine , Sticker Labeling Machines

Quick Detail:

1. Product: PET bottle shrink packing machine

2. Model:WD-150A

3. Main Material: SS304

4. Production capacity: 15000bph(500ml)

5. Usage: Packing machine

6. Warranty: 1year free

Description:

Applicable Bottle Types:

This automatic shrink labeling machine n be used for various kind of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

Electrical Appliance Configuration Specification

It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and sducer, besides, it adopts the positioning module to ensure casting label precise, rapid and stable.

Facility character

Applying imported PLC, which can control the machine automatically, with stable performance, precise control. With the capacity of feeding and sorting bottles, shrinking and cooling shaping automatically. Inductive switch control the feeding of film, which can control the length of film and reduce the consumption. Imported transducer control for the convey motor, which can can realize steeples speed regulation.

1. Invert speed control.

2. Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling.

3. This machine applies air-stirring mechanism in pushing bottle and hot sealing-cool cutting. It uses flat silk pulse seal, the saw tooth knife cuts, the unique heat seal-cool cut mechanism, has guaranteed the packing agglutination, reliable, and artistic.

4. Automatic unscrambling bottle's appliance makes bottle changing more quickly and conveniently.

5. Delivering film mechanism and the tensity voluntarily adjusts.

6. PLC programmable procedure control system.
7. Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature controller that apparently saves energy.

8. It applies wing shape stainless steel heating system, which is durable for long time use.

9. The heatproof Bolivian filament special fluorine dragon transportation net belt is used in shrink part to ensure the steady of transportation and high strengthen wear proof.

10. This machine applies invert speed control net belt conveying mechanism.

11. The height of the conveyer shall be made towards client's demand.

12. The direction of bottle entering can be adjusted according to client's demand

13, according customer request, can make the stainless steel belt inside the shrink tunnel instead of plastic belt.

Technical parameter

 Competitive Advantage:

Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

1. Bottled water production line
2. Carbonated soft drinks production line
3. Hot-fill juice and tea production line
4. 5 Gallon bottled water production line
5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
