20000BPH Labeling Equipment

จีน 20000BPH Labeling Equipment ผู้ผลิต
20000BPH Labeling Equipment ผู้ผลิต 20000BPH Labeling Equipment ผู้ผลิต 20000BPH Labeling Equipment ผู้ผลิต 20000BPH Labeling Equipment ผู้ผลิต

ภาพใหญ่ :  20000BPH Labeling Equipment

รายละเอียดสินค้า:

Place of Origin: China Mainland
ชื่อแบรนด์: Jiayuan
ได้รับการรับรอง: CE,SGS
Model Number: WD –S350

การชำระเงิน:

Minimum Order Quantity: 1 set
ราคา: Negotiation
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 5 sets/month
Verified Supplier

China Mainland

  • Product Details
รายละเอียดสินค้า
Automatic Grade: Auto Bottle Type: Round Bottle, Flat Bottle, curved bottle
Capacity: 20000BPH Driven Type: PLC, Ectric
Power: 15Kw Product name: Shrink Packing Machine
Shrinkage film material: PE
แสงสูง:

Wrap Around Packer

,

Sticker Labeling Machines



Thermal Curved Bottle Shrink Packing Machine 20000BPH Labeling Equipment



Quick Detail:



1. Product: Thermal shrink packaging machine

2. Model:WD-350A

3. Main Material: SS304

4. Production capacity: 20000bph(500ml)

5. Usage:Packing machine

6. Warranty: 1year free

Thermal shrink packaging machine





Description:



Applicable Bottle Types:

This automatic shrink labeling machine n be used for various kind of bottle types, for example : round bottle, square bottle,flat bottle, curved bottle and cup-shaped, etc.

Electrical Appliance Configuration Specification

It adopts PLC programmable controller, imported servo motor, servodriver, frequency converter and sducer,besides, it adopts the positioning module  to ensure casting label precise, rapid and stable.

Facility character

Technical parameter:

1),technical parameter:

● facility type:WD-250A type

● facility external size:L5050×W3300×H2100mm

● wrappage max size:L600×W400×H350mm

● shrinkage film size:PE,PVC,POF

● shrinkage thermo thickness:0.03-0.15mm

● Thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.

● max output per minute:25bag

● facility power:18Kw

● actual power:15Kw/hr

2),facility basic configuration:

● stainless steel wing heating tube   12 piece

● China-America cooperation Teflon convey belt.

● Shanghai Hemei electric-motor and Zhejiang Taili worm speed-regulation machine.

● South-Korea Autonics photoelectric switch, proximity.

● thermo sealing knife ulminium-mould heating board, even temperature, long life, our company special production.

● Carton and wrappage film pack separately.

3),product description:

● frequency converter speed adjust,two segment convey device.

● Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.

● Proximity switch control film length.

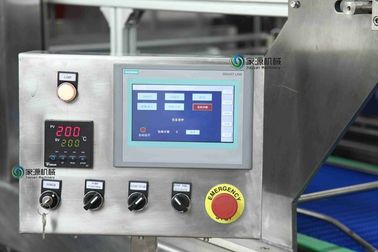

● Touch screen, PLC system greatly increases facility movement reliability.

● double-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.

● Super big wind-volume cooling system, ensure quickly get into shape .

● Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.

4),technical condition and requirement:

     1,package type:

(1)350/500/550/600ML big bag:4×6,4×5 ;small bag,3×4,3×5 four type of package.

             (2)1L/1.5L/2L/2.5L big bag:3×3,3×4;small bag,2×2,2×3 four type of package

  1. Regarding can, we suggest adopt to package with tray, pack steadily.

      3, package speed:8-15bag/min

5),solution:

     1,according production line, auto arrange, and combine our company WD-150A automatic sealing and cutting mature structure, as the machine fracture.

 2,the production line can match with any company filling device. For it stability, the production line main component all adopt to import, joint venture famous brand.

 3,if pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet with output requirement, among WD-150A fracture has original creation, it is the highest-efficiency, highest economical collocate at the same time.

         4,PE film adopt to flake, upper and down roll, auto seal and cut to roll type and   up to shrinkage efficiency,

20000BPH Labeling Equipment 020000BPH Labeling Equipment 120000BPH Labeling Equipment 220000BPH Labeling Equipment 3





Competitive Advantage:



Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

  1. Bottled water production line
  2. Carbonated soft drinks production line
  3. Hot-fill juice and tea production line
  4. 5 Gallon bottled water production line
  5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
