PVC Film Shrink Labeling Machine

ฉันส่งการแจ้งเตือนผลิตภัณฑ์ใหม่ล่าสุด
(ไม่มีสแปม - เราจะไม่ขายหรือแบ่งปันที่อยู่อีเมลของคุณ)

PVC Film Shrink Labeling Machine

จีน PVC Film Shrink Labeling Machine ผู้ผลิต
PVC Film Shrink Labeling Machine ผู้ผลิต PVC Film Shrink Labeling Machine ผู้ผลิต PVC Film Shrink Labeling Machine ผู้ผลิต PVC Film Shrink Labeling Machine ผู้ผลิต

ภาพใหญ่ :  PVC Film Shrink Labeling Machine

รายละเอียดสินค้า:

Place of Origin: China Mainland
ชื่อแบรนด์: Jiayuan
ได้รับการรับรอง: CE,SGS
Model Number: WD –S350

การชำระเงิน:

Minimum Order Quantity: 1 set
ราคา: Negotiation
Packaging Details: Seaworthy Wooden Case
Delivery Time: 40 days
Payment Terms: T/T; L/C
Supply Ability: 5 sets/month
Verified Supplier

China Mainland

  • Product Details
รายละเอียดสินค้า
Applied Material: PVC, PET, OPS Automatic Grade: Auto
Bottle type: PET capacity: 20000bph
Driven Type: Electric Power: 3Kw
Product name: Shrink Labeling Machine
แสงสูง:

shrink sleeve labeling machine

,

automatic labeling machine



3Kw Shrink Labeling Machine PVC Film 20000bph For Round Bottle



Quick Detail:



1. Product: Auto Sleeve Shrink Machine

2. Model:WD –S350

3. Main Material: SS304

4. Production capacity: 20000bph(500ml)

5. Usage: Labeling machine

6. Warranty: 1year free

Auto Sleeve Shrink Machine Auto





Description:



Auto Sleeve Shrink Machine

1) The machine is made of stainless steel and high quality Aluminum alloy, structure in reason, tighten, adjustment conveniently.

2) Not need ground feet bolts, move conveniently, flexible assort production field.

3) Shrink film volume label frame, according to different volume label paper pipe adjusted range 5”-10”.

4) Transmission machine can be adjusted conveniently without tools, which make is more suitable for different bottle sizes.

5) Forced insertion design proves to be reasonable and convenient.

6) The system of cutting volume label ensures last error.

7) Special designed knife plate is changed free with the related specifications.

8) Newel nip system makes change and installation rapid without tools.

9) Disport bottle screw, located strap, transport chain adopts synchronization adjust model, adjust facility.

10) Introduce Japanese servo motor and high-delicacy photo electricity, the length of cutting label is precise.

Flow Chart : PVC Label --->Shrink labeling machne ---> shrink tunnel ---> steam generator ---> Finish



Machine parameter



Input Power

3KW

Input Voltage

3 Phase, 380/220VAC

Production Efficiency

21,000-24,000b/h

Size of Host Machine(mm)

2100L*1,100W*2,200H

Applicable Diameter of Bottle Body

dia.28mm-125mm

Applicable Length of Label

30 mm~180mm

Applicable Thickness of Label

0.03 mm~0.13 mm

Applicable Internal Diameter of Paper Tube

5″~10″adjust it at will





Applicable Bottle Types



Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,

 etc.



Pictures:

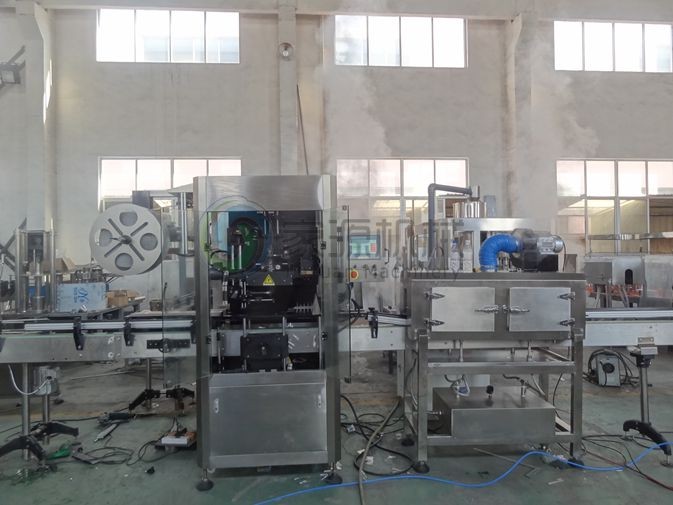

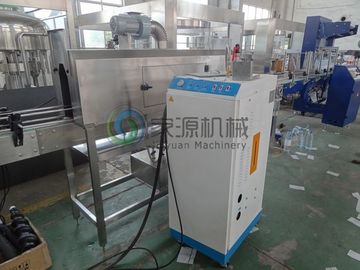

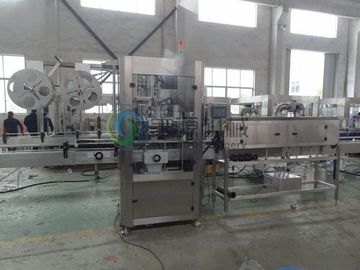

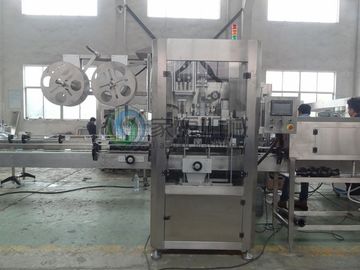

PVC Film Shrink Labeling Machine 0PVC Film Shrink Labeling Machine 1PVC Film Shrink Labeling Machine 2PVC Film Shrink Labeling Machine 3



Main technical parameters:

Electrical Source

3&380/220VAC

Power

3KW

Dimension

2000*1000*2150(mm)

Packing Speed

350BPM(MAX)

Bottle Dimension

28-125*300(H)mm

Label Thickness

0.04-0.07mm

Applied Material

PVC PET OPS

Label thickness

30-250mm(MAX)

Total Weight

450kg



Competitive Advantage:



Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

  1. Bottled water production line
  2. Carbonated soft drinks production line
  3. Hot-fill juice and tea production line
  4. 5 Gallon bottled water production line
  5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
