200L - 2000L PET Bottle Filling Plant

ฉันส่งการแจ้งเตือนผลิตภัณฑ์ใหม่ล่าสุด
(ไม่มีสแปม - เราจะไม่ขายหรือแบ่งปันที่อยู่อีเมลของคุณ)

200L - 2000L PET Bottle Filling Plant

จีน 200L - 2000L PET Bottle Filling Plant ผู้ผลิต
200L - 2000L PET Bottle Filling Plant ผู้ผลิต 200L - 2000L PET Bottle Filling Plant ผู้ผลิต 200L - 2000L PET Bottle Filling Plant ผู้ผลิต 200L - 2000L PET Bottle Filling Plant ผู้ผลิต

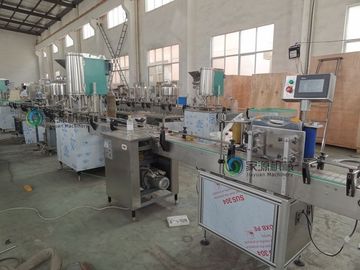

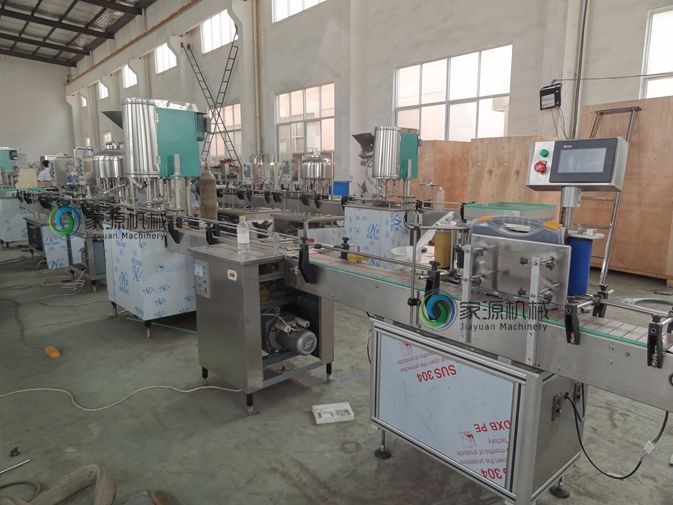

ภาพใหญ่ :  200L - 2000L PET Bottle Filling Plant

รายละเอียดสินค้า:

Place of Origin: China Mainland
ชื่อแบรนด์: Jiayuan
ได้รับการรับรอง: CE,SGS
Model Number: QS-12; CYG-12; FXZ-1

การชำระเงิน:

Minimum Order Quantity: 1 set
ราคา: USD8500
Packaging Details: Wooden case for shipment
Delivery Time: 20 days
Payment Terms: T/T; L/C
Supply Ability: 10 sets/month
Verified Supplier

China Mainland

  • Product Details
รายละเอียดสินค้า
Application: Liquid, CSD, Juice, Beer Automatic Grade: Auto
Bottle type: PET, Barrel Capacity: 2000BPH
Feature: Aseptic Function: 3 in 1
Product name: Beverage Filling Line
แสงสูง:

PET Bottle Filler Machine

,

Beverage Filling Line





200L - 2000L PET Bottle Mini CSD Filling Plant 3 in 1 Monoblock



Quick Detail:



  1. Product: 200-2000L PET bottle Small water making machine
  2. Main material: SS304 (can be tested)
  3. Production capacity: 2000bph (500ml)
  4. Certificate: CE&SGS
  5. Install: Engineer available to abroad





Description:



200-2000L PET bottle Small water making machine

1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance.





Applications:



Small capacity mineral water bottling machine fills all kind of NON-carbonated beverage and low thickness beverage and fruit powder mixing drinks. All parts of this machine is made of stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life





Specification

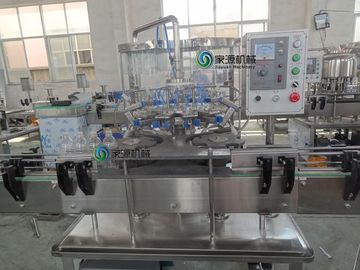

Rinsing Machine

200L - 2000L PET Bottle Filling Plant 0



L. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.
8. Equipped with bottle jam protection device.

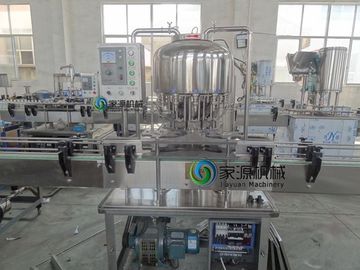

Filling Machine



200L - 2000L PET Bottle Filling Plant 1



1. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

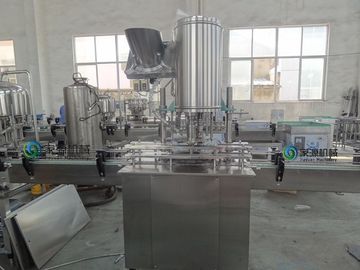

Capping Machine



200L - 2000L PET Bottle Filling Plant 2



1. The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
2. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
3. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
4. The capper is equipped with inlet bottle detection switch.
5. Centrifugal way of cap arranging is adopted to reduce damage of caps.
6. A cap inspecting system is applied to control on-off of elevator.





Competitive Advantage:



1).It is ideal equipment for producing mineral water, super-pure water, space water and distilled water.

2).Advanced PLC control system (famous brand)

3).The key parts are imported and their quality is reliable.

4).The whole machine is made of stainless steel (304/316)

5).Its structure is reasonable and its operation is convenient.

6).Easy cleaning and corrosion.
